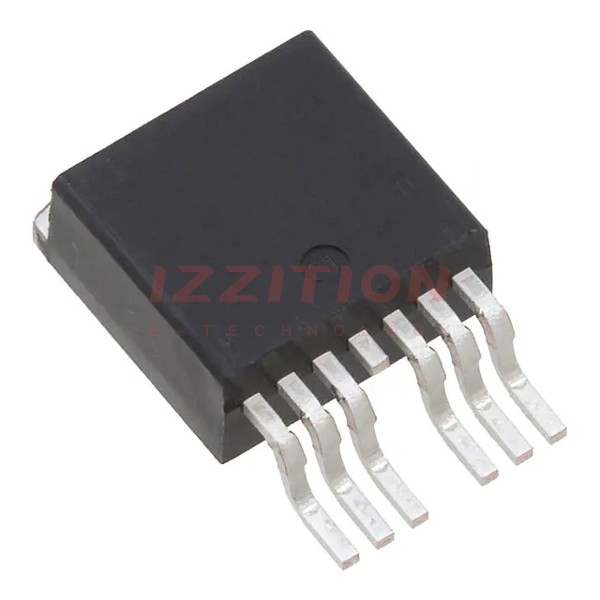

| Part Number | AUIRLS3036-7P | AUIRLS3034-7P |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 180A, 10V | 1.4mOhm @ 200A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 4.5 V | 180 nC @ 4.5 V |
| Vgs (Max) | ±16V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11270 pF @ 50 V | 10990 pF @ 40 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 380W (Tc) | 380W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK (7-Lead) | D2PAK (7-Lead) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
