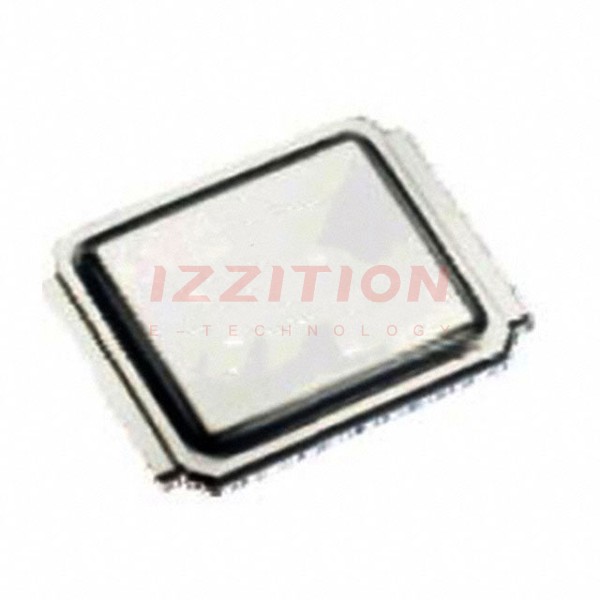

| Part Number | AUIRL7766M2TR | AUIRL7736M2TR |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 179A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 31A, 10V | 3mOhm @ 67A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 150µA | 2.5V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 4.5 V | 78 nC @ 4.5 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 5305 pF @ 25 V | 5055 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 62.5W (Tc) | 2.5W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric M4 | DirectFET™ Isometric M4 |
| Package / Case | DirectFET™ Isometric M4 | DirectFET™ Isometric M4 |
