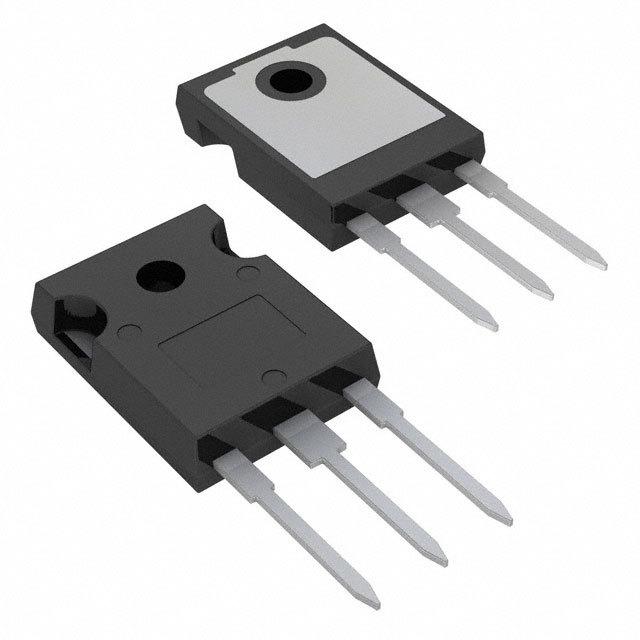

| Part Number | AUIRGP65A40D0 | AUIRGP65G40D0 | AUIRGF65A40D0 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Discontinued at Digi-Key |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | - | 600 V | - |
| Current - Collector (Ic) (Max) | - | 62 A | - |
| Current - Collector Pulsed (Icm) | - | 84 A | - |
| Vce(on) (Max) @ Vge, Ic | - | 2.2V @ 15V, 20A | - |
| Power - Max | - | 625 W | - |
| Switching Energy | - | 298µJ (on), 147µJ (off) | - |
| Input Type | - | Standard | - |
| Gate Charge | - | 270 nC | - |
| Td (on/off) @ 25°C | - | 35ns/142ns | - |
| Test Condition | - | 400V, 20A, 4.7Ohm, 15V | - |
| Reverse Recovery Time (trr) | - | 41 ns | - |
| Operating Temperature | - | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AC | TO-247AC | TO-247AD |
