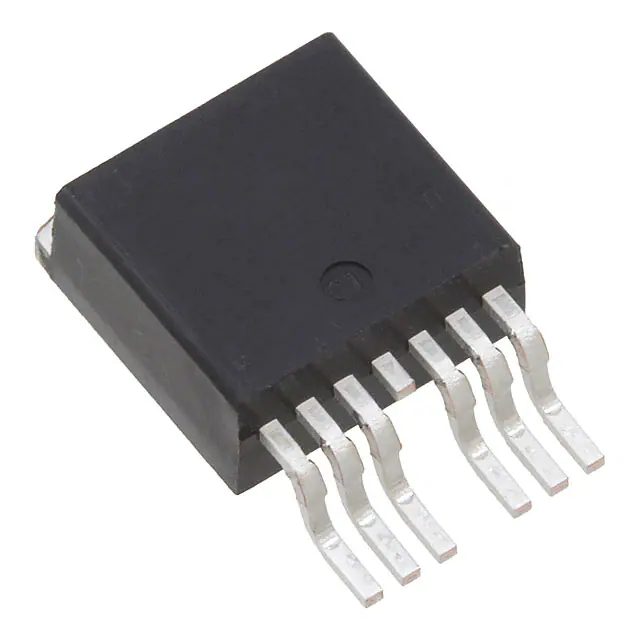

| Part Number | AUIRFS8409-7TRL | AUIRFSA8409-7TRL | AUIRLS8409-7TRL | AUIRFS8407-7TRL | AUIRFS8408-7TRL |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | 523A (Tc) | 240A (Tc) | 240A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 4.5V, 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 0.75mOhm @ 100A, 10V | 0.69mOhm @ 100A, 10V | 0.75mOhm @ 100A, 10V | 1.3mOhm @ 100A, 10V | 1mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA | 3.9V @ 250µA | 2.4V @ 250µA | 3.9V @ 150µA | 3.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 460 nC @ 10 V | 460 nC @ 10 V | 266 nC @ 4.5 V | 225 nC @ 10 V | 315 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±16V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13975 pF @ 25 V | 13975 pF @ 25 V | 16488 pF @ 25 V | 7437 pF @ 25 V | 10250 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 375W (Tc) | 375W (Tc) | 375W (Tc) | 231W (Tc) | 294W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK (7-Lead) | PG-TO263-7 | PG-TO263-7 | D2PAK (7-Lead) | PG-TO263-7-900 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
