Infineon Technologies-AUIRFS4010-7TRL - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	190A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	4mOhm @ 110A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	230 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	9830 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	380W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK (7-Lead)

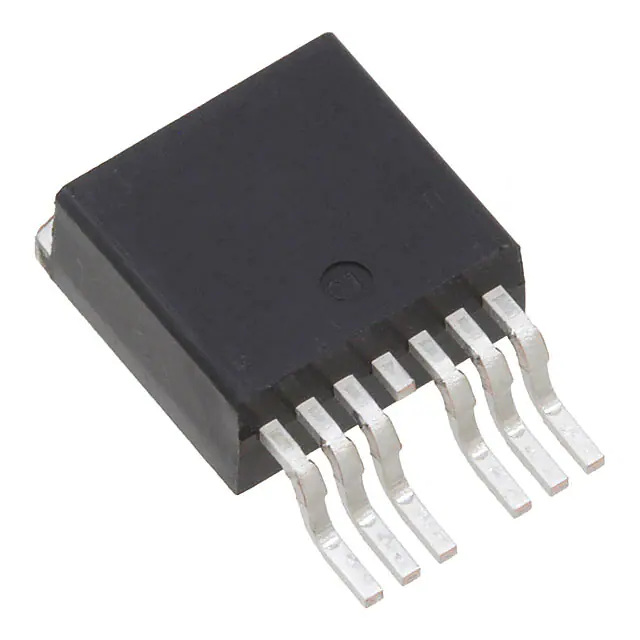

Package / Case:	TO-263-7, D²Pak (6 Leads + Tab)

Infineon Technologies AUIRFS4010-7TRL
