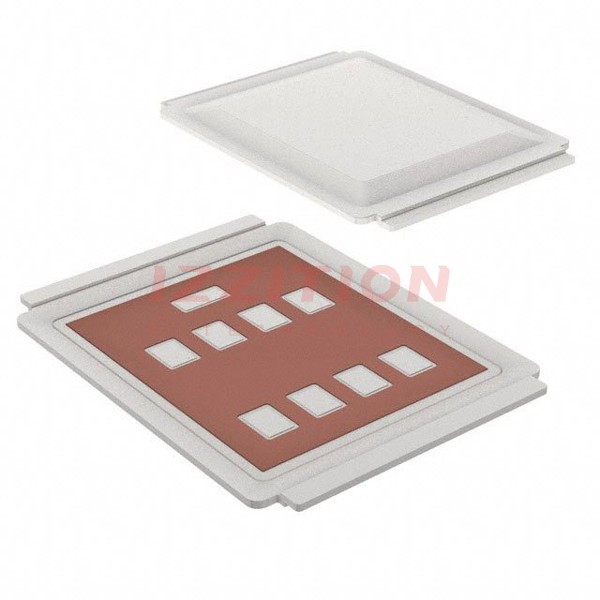

| Part Number | AUIRF7759L2TR | AUIRF7769L2TR | AUIRF7799L2TR | AUIRF7739L2TR | AUIRF7749L2TR |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V | 100 V | 250 V | 40 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 375A (Tc) | 375A (Tc) | 375A (Tc) | 46A (Ta), 270A (Tc) | 36A (Ta), 345A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 96A, 10V | 3.5mOhm @ 74A, 10V | 38mOhm @ 21A, 10V | 1mOhm @ 160A, 10V | 1.5mOhm @ 120A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 5V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 300 nC @ 10 V | 300 nC @ 10 V | 165 nC @ 10 V | 330 nC @ 10 V | 275 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±30V | ±20V | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 12222 pF @ 25 V | 11560 pF @ 25 V | 6714 pF @ 25 V | 11880 pF @ 25 V | 10655 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 3.3W (Ta), 125W (Tc) | 3.3W (Ta), 125W (Tc) | 4.3W (Ta), 125W (Tc) | 3.8W (Ta), 125W (Tc) | 3.8W (Ta), 341W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 |
| Package / Case | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 |
