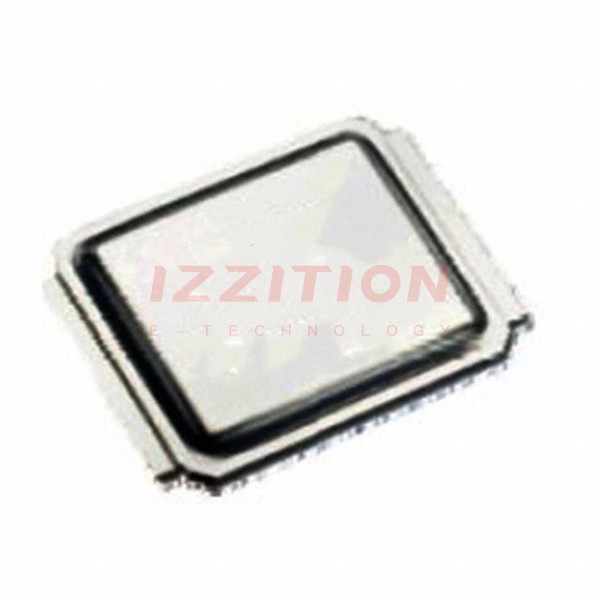

| Part Number | AUIRF7736M2TR | AUIRF8736M2TR | AUIRF7734M2TR |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 108A (Tc) | 27A (Ta), 137A (Tc) | 17A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 65A, 10V | 1.9mOhm @ 85A, 10V | 4.9mOhm @ 43A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 150µA | 3.9V @ 150µA | 4V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 108 nC @ 10 V | 204 nC @ 10 V | 72 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4267 pF @ 25 V | 6867 pF @ 25 V | 2545 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta), 63W (Tc) | 2.5W (Ta), 63W (Tc) | 2.5W (Ta), 46W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric M4 | DirectFET™ Isometric M4 | DirectFET™ Isometric M2 |
| Package / Case | DirectFET™ Isometric M4 | DirectFET™ Isometric M4 | DirectFET™ Isometric M2 |
