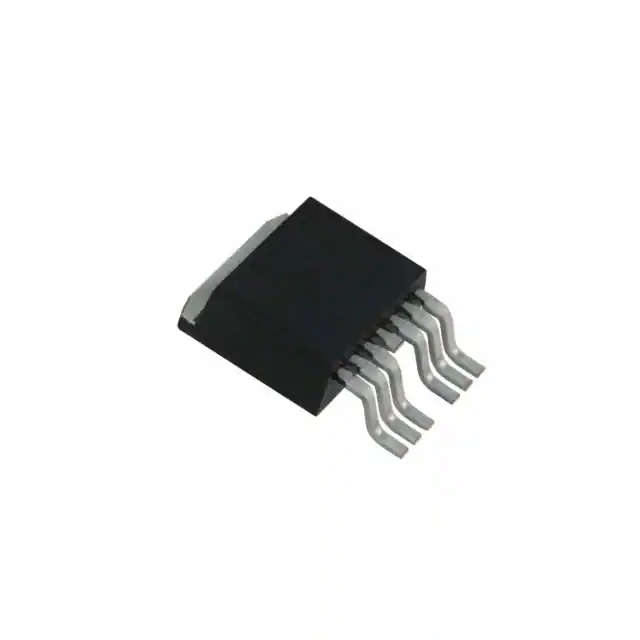

| Part Number | AUIR33401STRL | AUIR33402STRL |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 6V ~ 18V | 6V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 33A | 33A |
| Rds On (Typ) | 3mOhm | 3mOhm |
| Input Type | Non-Inverting | - |
| Features | - | - |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK (7-Lead) | D2PAK (7-Lead) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
