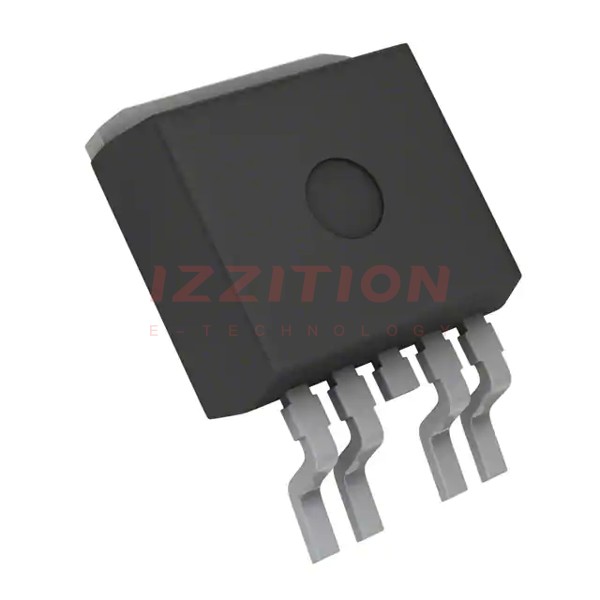

| Part Number | AUIR3314S | AUIR3315S | AUIR3316S | AUIR3317S | AUIR3313S | AUIR3314 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 6V ~ 32V | 6V ~ 32V | 6V ~ 26V | 6V ~ 26V | 6V ~ 32V | 6V ~ 32V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 18A | 14A | 23A | 7A | 23A | 18A |
| Rds On (Typ) | 9mOhm | 15mOhm | 5.5mOhm | 5.5mOhm | 5.5mOhm | 9mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | - | - | - | - | - | - |
| Fault Protection | Current Limiting (Adjustable), Over Temperature | Current Limiting (Adjustable), Over Temperature | Current Limiting (Adjustable), Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Adjustable), Over Temperature | Current Limiting (Adjustable), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Supplier Device Package | PG-TO263-5 | D2PAK | D2PAK | D2PAK | PG-TO263-5 | TO-220 |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-220-5 |
