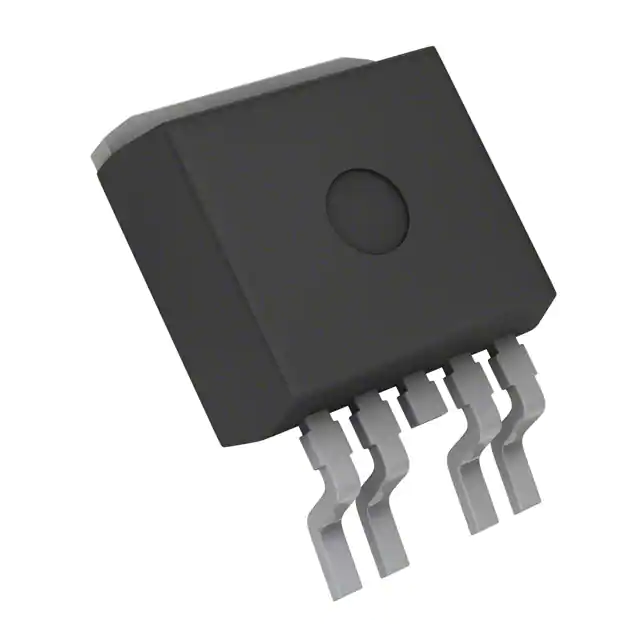

| Part Number | AUIPS6011S | AUIPS6021S | AUIPS6031S | AUIPS6041S | AUIPS1011S | AUIPS6011R |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | Low Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 36V (Max) | 36V (Max) | 36V (Max) | 6V ~ 28V | 36V (Max) | 36V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 6.3A | 4.3A | 3.1A | - | 6.5A | 5.6A |
| Rds On (Typ) | 11mOhm | 24mOhm | 46mOhm | 110mOhm | 10mOhm | 11mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Auto Restart | Auto Restart | Auto Restart | Auto Restart | - | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK | D2PAK | D2PAK | D2PAK-5 | D2PAK | D-Pak |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-252-5, DPak (4 Leads + Tab), TO-252AD | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
