| Part Number | AIKW50N65RF5XKSA1 | AIKW50N65DF5XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | - |
| Current - Collector Pulsed (Icm) | 150 A | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A | 2.1V @ 15V, 50A |
| Power - Max | 250 W | 270 W |
| Switching Energy | 310µJ (on), 120µJ (off) | 490µJ (on), 140µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 109 nC | 1018 nC |
| Td (on/off) @ 25°C | 20ns/156ns | 21ns/156ns |
| Test Condition | 400V, 25A, 12Ohm, 15V | 400V, 25A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

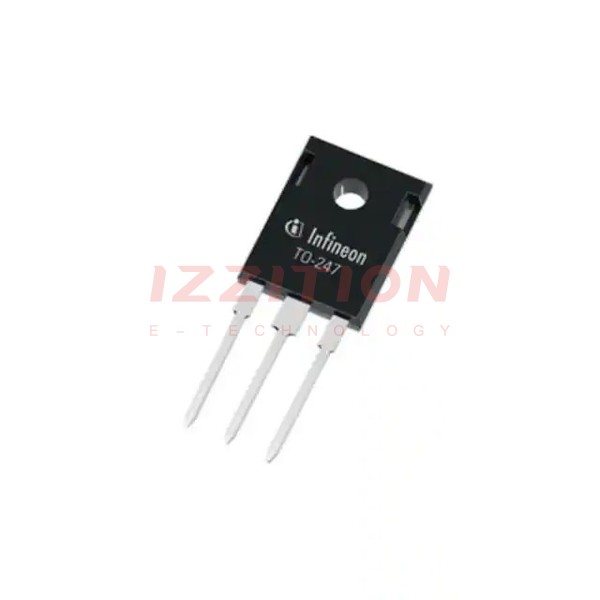

| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-TO247-3 | PG-TO247-3-41 |
