Please send RFQ , we will respond immediately.

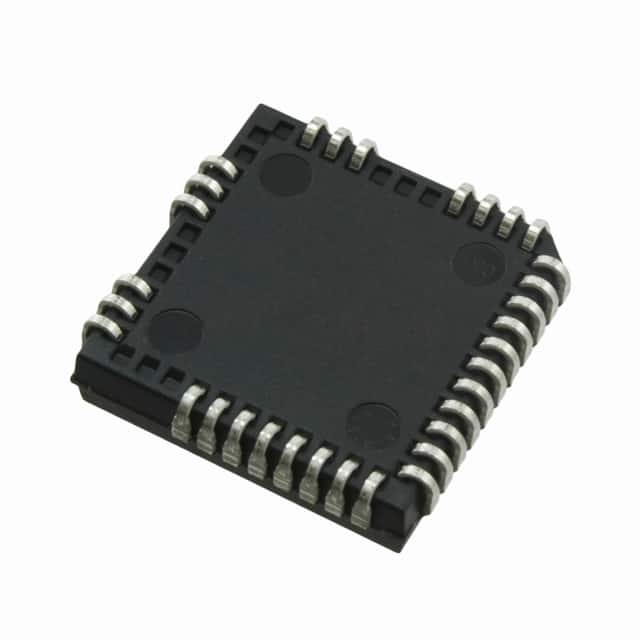

| Part Number | 98-0036 | 98-0066 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | High-Side or Low-Side |
| Channel Type | 3-Phase | Single |
| Number of Drivers | 6 | 1 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 12V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | 250mA, 500mA |
| Input Type | Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V |
| Rise / Fall Time (Typ) | 80ns, 35ns | 80ns, 40ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) | 8-SOIC |
