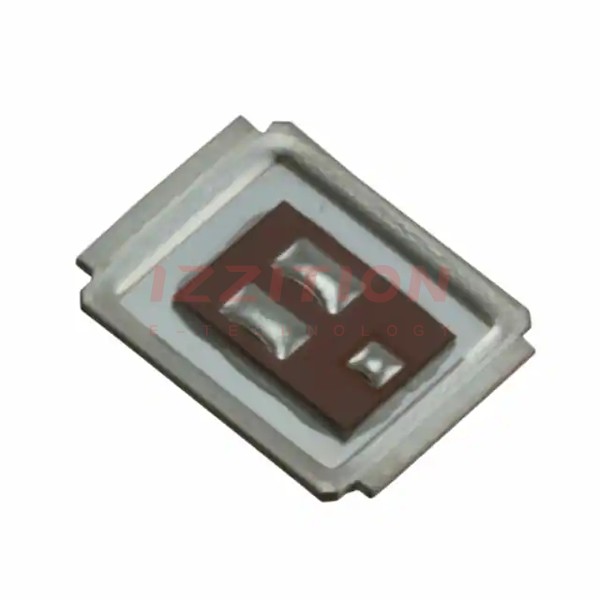

| Part Number | 64-9145 | 64-9146 | 64-9144 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 150A (Tc) | 32A (Ta), 180A (Tc) | 14A (Ta), 55A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.7mOhm @ 27A, 10V | 1.8mOhm @ 15A, 10V | 8.1mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.45V @ 250µA | 2.5V @ 250µA | 2.35V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 4.5 V | 71 nC @ 4.5 V | 17 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±12V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4130 pF @ 10 V | 6580 pF @ 10 V | 1300 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.1W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX | DIRECTFET™ MT | DIRECTFET™ ST |
| Package / Case | DirectFET™ Isometric MX | DirectFET™ Isometric MT | DirectFET™ Isometric ST |
