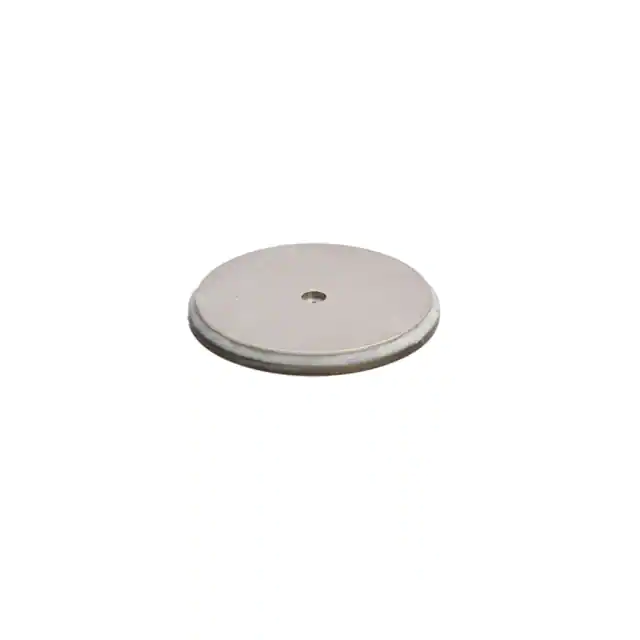

Infineon Technologies-38DN06B02ELEMXPSA1 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	5140A
Voltage - Forward (Vf) (Max) @ If:	960 mV @ 4500 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	50 mA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis Mount
Package / Case:	DO-200AC, K-PUK
Supplier Device Package:	BG-D-ELEM-1
Operating Temperature - Junction:	180°C (Max)

Infineon Technologies 38DN06B02ELEMXPSA1
