| Part Number | 2EDN7523RXUMA1 | 2EDN7524RXUMA1 | 2EDN8523RXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | - | - | 1.2V, 1.9V |
| Current - Peak Output (Source, Sink) | 5A, 5A | 5A, 5A | 5A, 5A |
| Input Type | Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns | 5.3ns, 4.5ns | 5.3ns, 4.5ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

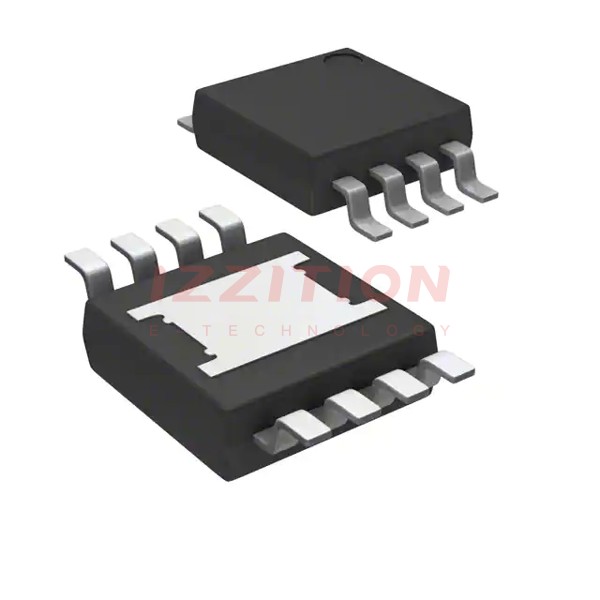

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | PG-TSSOP-8 | PG-TSSOP-8 | PG-TSSOP-8 |
