| Part Number | 2EDL8024GXUMA1 | 2EDL8124GXUMA1 | 2EDL8023GXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Driven Configuration | High-Side and Low-Side | High-Side and Low-Side | High-Side and Low-Side |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V |
| Logic Voltage - VIL, VIH | - | - | - |
| Current - Peak Output (Source, Sink) | 4A, 4A | 4A, 4A | 3A, 3A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 90 V | 90 V | 90 V |
| Rise / Fall Time (Typ) | 45ns, 45ns | 45ns, 45ns | 45ns, 45ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

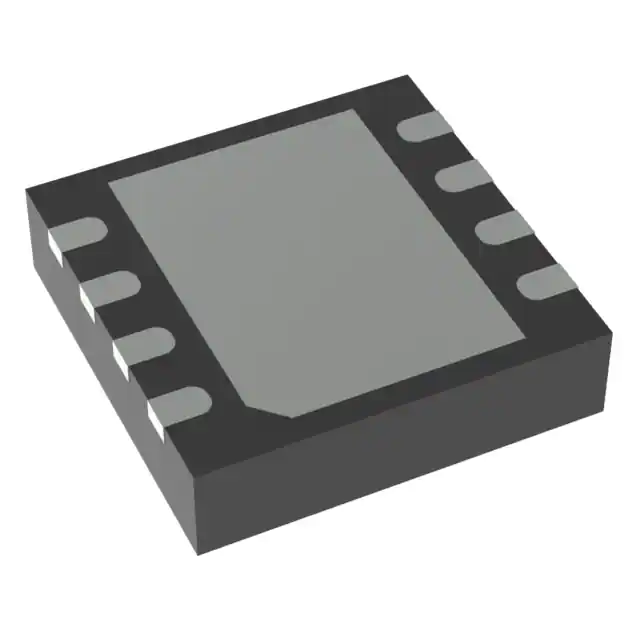

| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | PG-VDSON-8-4 | PG-VDSON-8-4 | PG-VDSON-8-4 |
