| Part Number | 2EDF9275FXUMA1 | 2EDF7275FXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent |
| Number of Drivers | 2 | 2 |
| Gate Type | IGBT, SiC MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 20V | 20V |
| Logic Voltage - VIL, VIH | -, 1.65V | -, 1.65V |
| Current - Peak Output (Source, Sink) | 4A, 8A | 4A, 8A |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 650 V | - |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

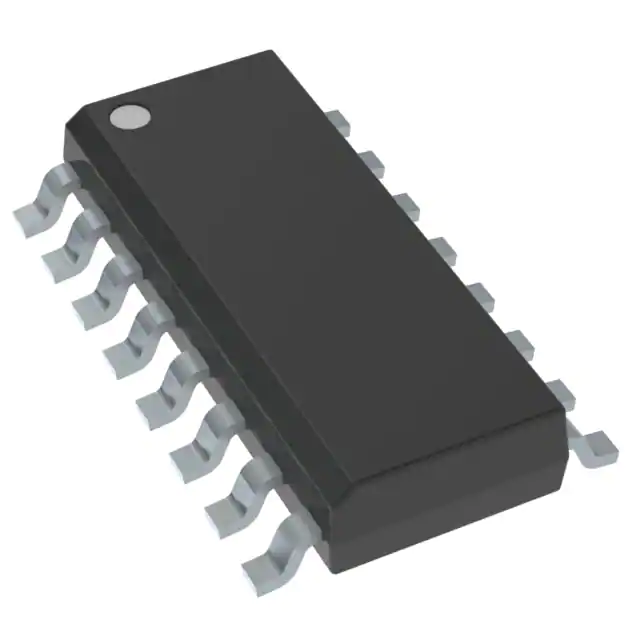

| Package / Case | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-16-11 | PG-DSO-16-11 |
