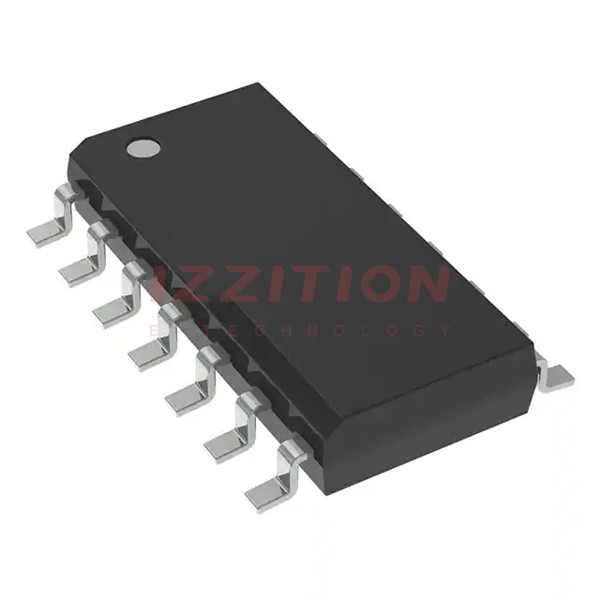

| Part Number | 2ED21064S06JXUMA1 | 2ED21094S06JXUMA1 | 2ED21084S06JXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Driven Configuration | High-Side and Low-Side | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Synchronous | Synchronous |
| Number of Drivers | 2 | 1 | 1 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 1.1V, 1.7V | 1.1V, 1.7V | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink) | 290mA, 700mA | 290mA, 700mA | 290mA, 700mA |
| Input Type | - | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 20 V | 650 V | 650 V |
| Rise / Fall Time (Typ) | 100ns, 35ns | 100ns, 35ns | 100ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-14 | PG-DSO-14-49 | PG-DSO-14-49 |
