Infineon Technologies-1EDS5663HXUMA1 - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5700Vrms
Common Mode Transient Immunity (Min):	150V/ns
Propagation Delay tpLH / tpHL (Max):	44ns, 44ns
Pulse Width Distortion (Max):	18ns (Typ)
Rise / Fall Time (Typ):	6.5ns, 4.5ns
Current - Output High, Low:	4A, 8A
Current - Peak Output:	-
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	3.13V ~ 3.47V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	PG-DSO-16-30
Approval Agency:	CQC, CSA, UL, VDE

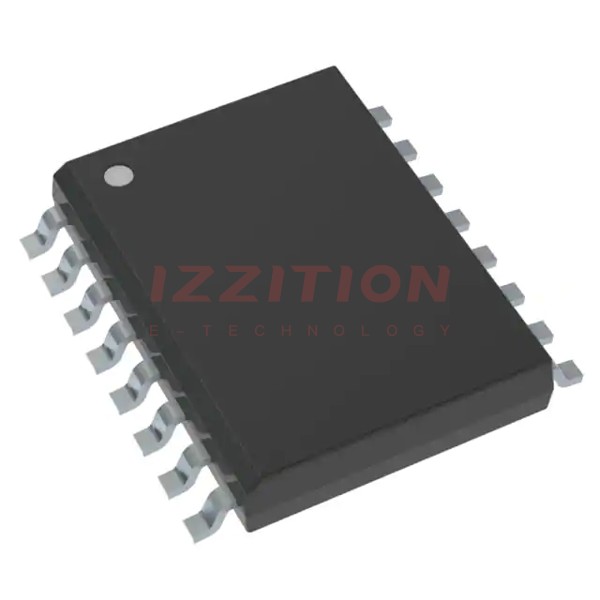

Infineon Technologies 1EDS5663HXUMA1
