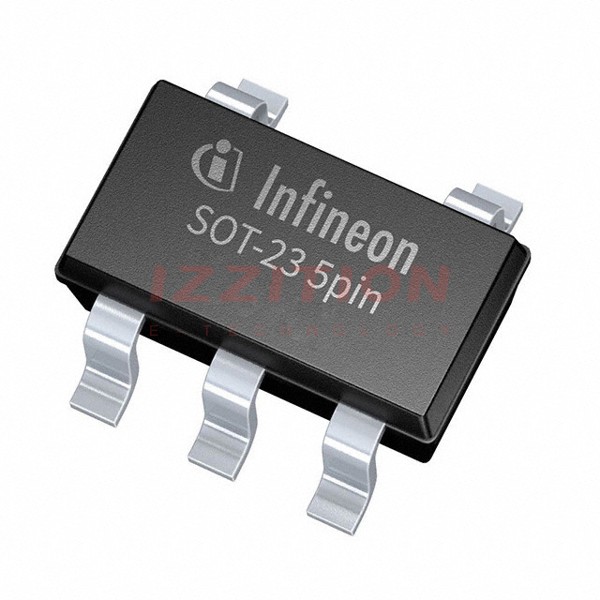

| Part Number | 1EDN7511BXTSA1 | 1EDN7512BXTSA1 | 1EDN7511BXUSA1 | 1EDN8511BXTSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key |
| Driven Configuration | Low-Side | Low-Side | Half-Bridge, Low-Side | Half-Bridge, Low-Side |
| Channel Type | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 |
| Gate Type | IGBT, N-Channel MOSFET | N-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.9V | - | 1.2V, 1.9V | 1.2V, 1.9V |
| Current - Peak Output (Source, Sink) | 4A, 8A | 4A, 8A | 4A, 8A | 4A, 8A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - |
| Rise / Fall Time (Typ) | - | 6.5ns, 4.5ns | 6.5ns, 4.5ns | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-6 | SC-74A, SOT-753 | SOT-23-6 | SOT-23-6 |
| Supplier Device Package | PG-SOT23-6-2 | PG-SOT23-5-1 | PG-SOT23-6-2 | PG-SOT23-6-2 |
