Infineon Technologies-1ED3120MU12HXUMA1 - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Magnetic Coupling
Number of Channels:	1
Voltage - Isolation:	1200Vrms
Common Mode Transient Immunity (Min):	200kV/µs
Propagation Delay tpLH / tpHL (Max):	-
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	15ns, 15ns
Current - Output High, Low:	5.5A, 5.5A
Current - Peak Output:	5.5A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	10V ~ 35V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	PG-DSO-8-66
Approval Agency:	UL

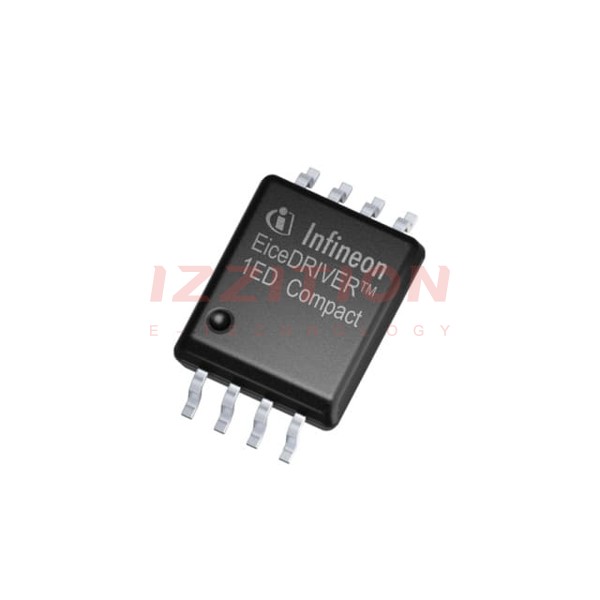

Infineon Technologies 1ED3120MU12HXUMA1
