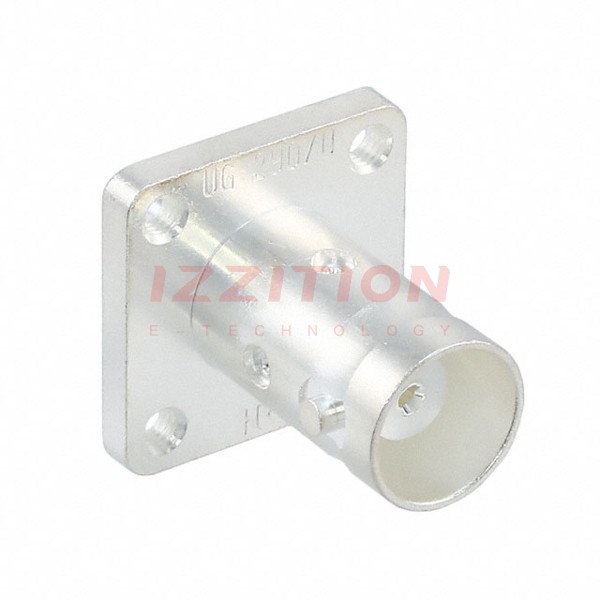

| Part Number | UG-290/U(40) | UG-291/U(40) | UG-260/U(40) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Last Time Buy | Last Time Buy |
| Connector Style | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin |
| Contact Termination | Solder Cup | Solder | Solder |
| Shield Termination | Solder | Clamp | Clamp |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | - |
| Cable Group | - | RG-55, 58 | RG-59, 62 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Brass |
