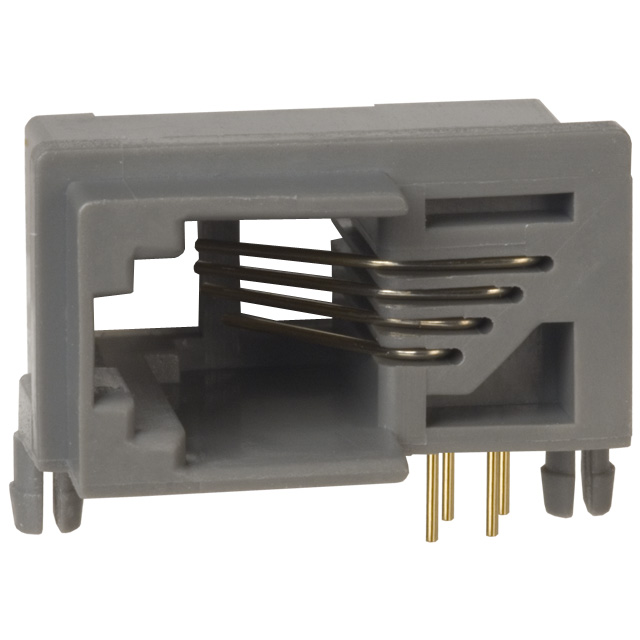

| Part Number | TM5RF-44(50) | TM5RF1-44(50) | TM5RF-64(50) | TM5RC-44(50) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete | Active |
| Connector Type | Jack | Jack | Jack | Jack |
| Number of Positions/Contacts | 4p4c (RJ9, RJ10, RJ22) | 4p4c (RJ9, RJ10, RJ22) | 6p4c (RJ11, RJ14) | 4p4c (RJ9, RJ10, RJ22) |
| Number of Ports | 1 | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 | 1 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder | Solder |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| Ratings | - | - | - | - |
| Features | Board Lock, Panel Stops | Board Lock, Panel Stops | Board Lock, Panel Stops | Board Lock |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - | - |
| Tab Direction | Side | Side | Side | Up |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold |
