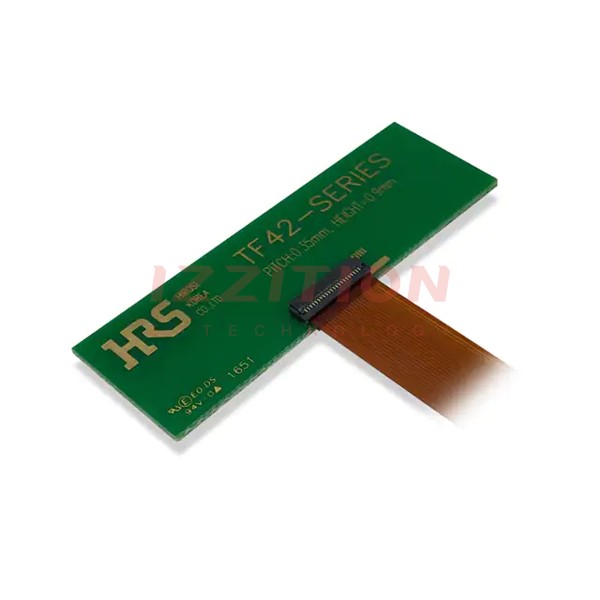

| Part Number | TF42-24S-0.35SH(800) | TF42-22S-0.35SH(800) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Flat Flex Type | FPC | - |
| Mounting Type | Surface Mount, Right Angle | - |
| Connector/Contact Type | Contacts, Bottom | - |
| Number of Positions | 24 | - |
| Pitch | 0.014" (0.35mm) | - |
| Termination | Solder | - |
| FFC, FCB Thickness | 0.20mm | - |
| Height Above Board | 0.035" (0.88mm) | - |
| Locking Feature | Flip Lock, Backlock | - |
| Cable End Type | Notched | - |
| Contact Material | Phosphor Bronze | - |
| Contact Finish | Gold | - |
| Housing Material | Liquid Crystal Polymer (LCP) | - |
| Actuator Material | Liquid Crystal Polymer (LCP) | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) | - |
| Voltage Rating | 30V | - |
| Operating Temperature | -55°C ~ 85°C | - |
| Material Flammability Rating | UL94 V-0 | - |
