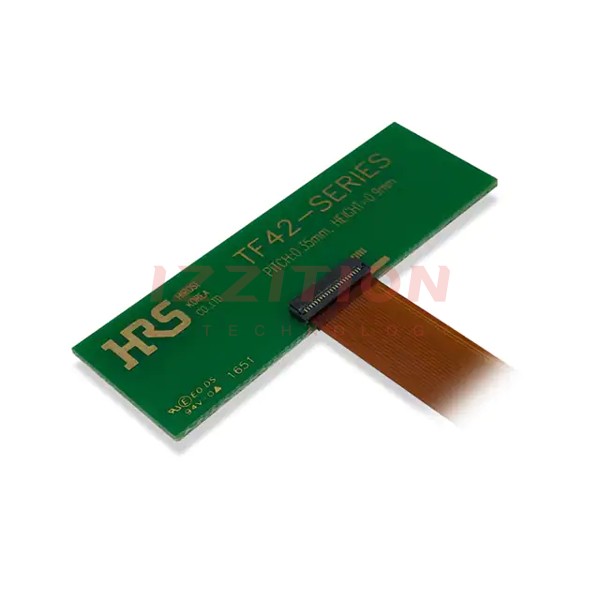

| Part Number | TF42-16S-0.35SH(800) | TF42-13S-0.35SH(800) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Flat Flex Type | - | FPC |
| Mounting Type | - | Surface Mount, Right Angle |
| Connector/Contact Type | - | Contacts, Bottom |
| Number of Positions | - | 13 |
| Pitch | - | 0.014" (0.35mm) |
| Termination | - | Solder |
| FFC, FCB Thickness | - | 0.20mm |
| Height Above Board | - | 0.035" (0.88mm) |
| Locking Feature | - | Flip Lock, Backlock |
| Cable End Type | - | Notched |
| Contact Material | - | Phosphor Bronze |
| Contact Finish | - | Gold |
| Housing Material | - | Liquid Crystal Polymer (LCP) |
| Actuator Material | - | Liquid Crystal Polymer (LCP) |
| Features | - | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | - | 30V |
| Operating Temperature | - | -55°C ~ 85°C |
| Material Flammability Rating | - | UL94 V-0 |
