TF31-20S-0.5SH(800)
  • Share:

Hirose Electric Co Ltd TF31-20S-0.5SH(800)

Manufacturer No:
TF31-20S-0.5SH(800)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
TF31-20S-0.5SH(800) Datasheet
ECAD Model:
-
Description:

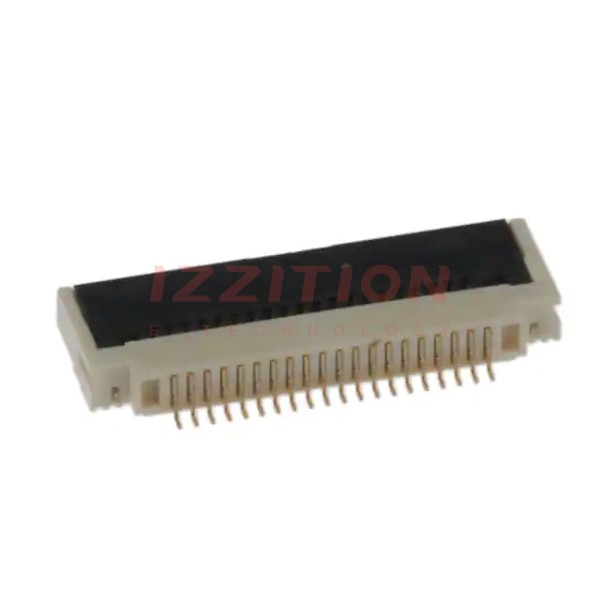

CONN FFC 20POS 0.50MM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:20
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.069" (1.75mm)
Locking Feature:Flip Lock
Cable End Type:Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Liquid Crystal Polymer (LCP)
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$1.89
497

Please send RFQ , we will respond immediately.

Similar Products

Part Number TF31-20S-0.5SH(800) TF31-40S-0.5SH(800)   TF31-28S-0.5SH(800)   TF31-24S-0.5SH(800)   TF31-22S-0.5SH(800)   TF31-26S-0.5SH(800)   TF31-30S-0.5SH(800)   TF31-50S-0.5SH(800)   TF31-60S-0.5SH(800)   TF31-21S-0.5SH(800)   TF31-10S-0.5SH(800)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Active Active Active Active Active Active Active
Flat Flex Type FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC FFC, FPC
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom Contacts, Bottom
Number of Positions 20 40 28 24 22 26 30 50 60 21 10
Pitch 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm)
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
FFC, FCB Thickness 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm 0.30mm
Height Above Board 0.069" (1.75mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.069" (1.75mm)
Locking Feature Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock Flip Lock
Cable End Type Tabbed Tabbed Tabbed Tabbed Tabbed Tabbed Tabbed Tabbed Tabbed Tabbed Tabbed
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Contact Finish Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Housing Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF)
Voltage Rating 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
