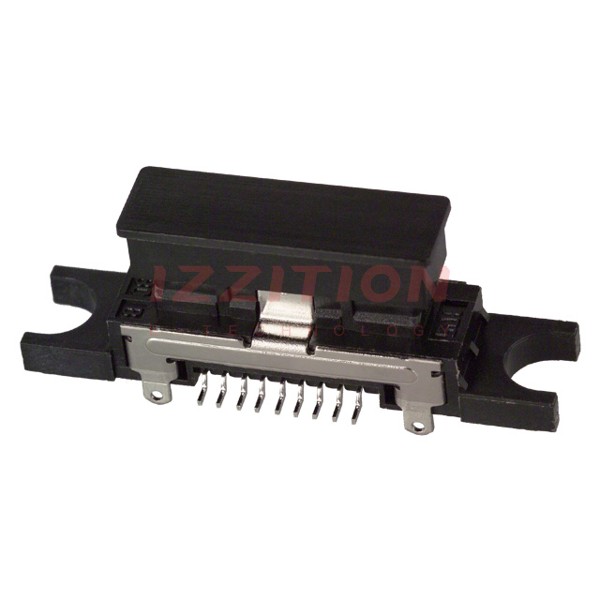

Hirose Electric Co Ltd ST80X-18S(30)

Manufacturer No:
ST80X-18S(30)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
ST80X-18S(30) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 18POS 1MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Cradle
Contact Type:Non-Gendered
Pitch - Mating:0.039" (1.00mm)
Number of Positions:18
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.378" (9.60mm)
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Mounting Flange, Shielded
Operating Temperature:-30°C ~ 80°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:100V
