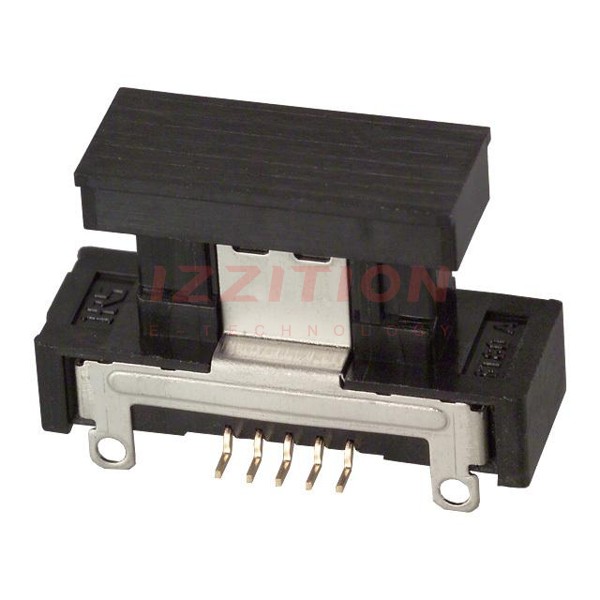

| Part Number | ST80X-10S | ST80X-18S |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Plug, Cradle | Plug, Cradle |
| Contact Type | Non-Gendered | Non-Gendered |
| Pitch - Mating | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Number of Positions | 10 | 18 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | 0.378" (9.60mm) | 0.378" (9.60mm) |
| Contact Shape | - | - |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | - | - |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Guide, Mounting Flange, Shielded | Board Guide, Mounting Flange, Shielded |
| Operating Temperature | -30°C ~ 80°C | -30°C ~ 80°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 0.5A | 0.5A |
| Voltage Rating | 100V | 100V |
