ST60X-36S
  • Share:

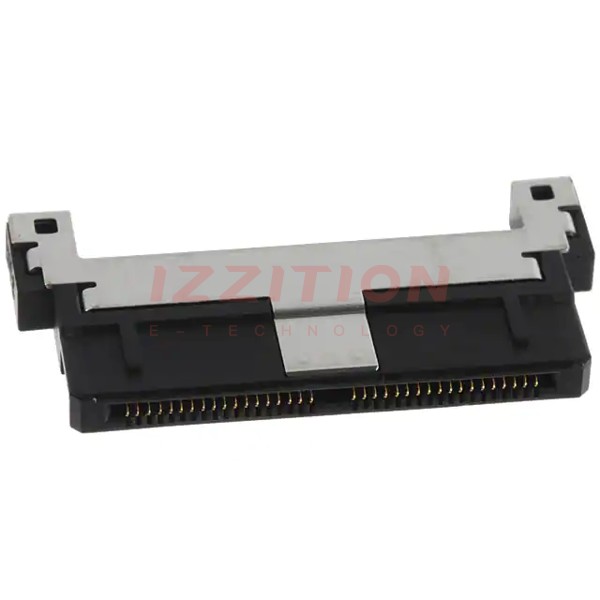

Hirose Electric Co Ltd ST60X-36S

Manufacturer No:
ST60X-36S
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
ST60X-36S Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 36POS 0.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Cradle
Contact Type:Non-Gendered
Pitch - Mating:0.020" (0.50mm)
Number of Positions:36
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.116" (2.95mm)
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA9T), Nylon 9T
Features:Board Guide, Mounting Flange, Shielded
Operating Temperature:-30°C ~ 80°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:100V
0 Remaining View Similar

In Stock

-
309

Please send RFQ , we will respond immediately.
