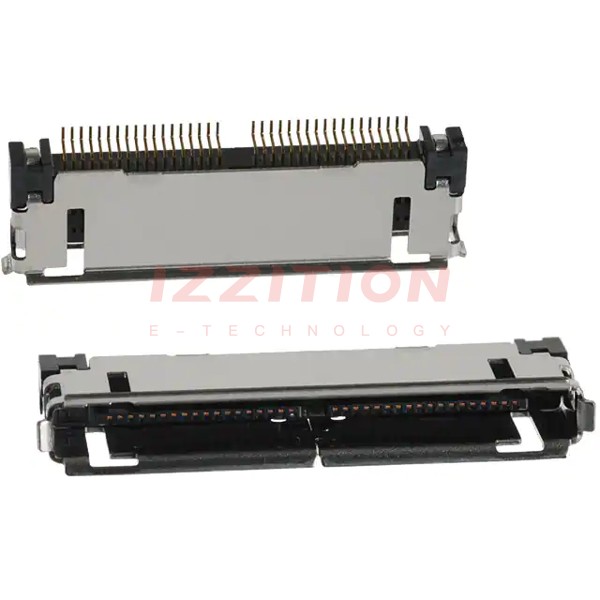

| Part Number | ST60-36PR(30) | ST60-36P(30) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Non-Gendered | Non-Gendered |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 36 | 36 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Board Edge, Surface Mount, Right Angle, Reverse Mount | Board Edge, Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black |
| Insulation Height | - | 0.118" (3.00mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -30°C ~ 80°C | -30°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Board Guide, Shielded | Board Guide, Shielded |
| Current Rating (Amps) | 0.5A | 0.5A |
| Voltage Rating | 100VAC | 100VAC |
