Please send RFQ , we will respond immediately.

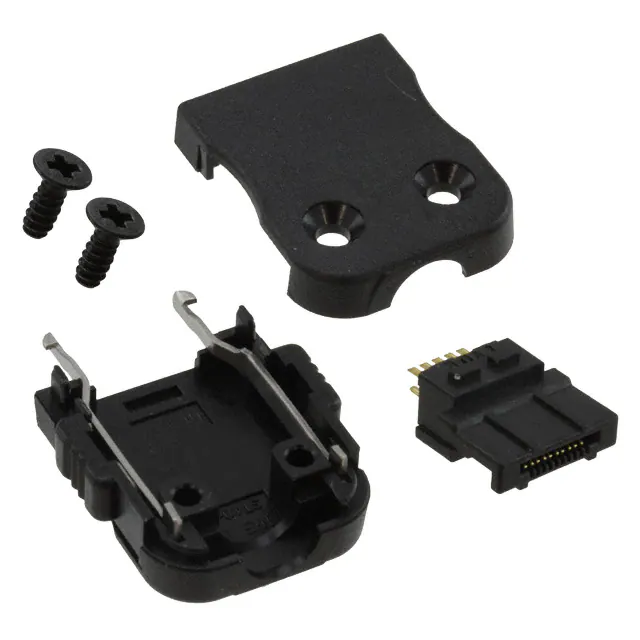

| Part Number | ST40-10S-CVR(30) | ST40X-10S-CVR(30) | ST40-10S-CVR(80) | ST40-10S-CV(30) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete | Active |
| Connector Type | Plug | Plug | Plug | Plug |
| Contact Type | Male Pin | Non-Gender Specific | Male Pin | Male Pin |
| Number of Positions | 10 | 10 | 10 | 10 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | - | - | - | - |
| Cable Termination | Solder | Solder | Solder | Solder |
| Wire Type | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | 28-30 AWG | - | 28-30 AWG | 28-30 AWG |
| Features | - | Shielded | - | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Color | Black | Black | Black | Black |
