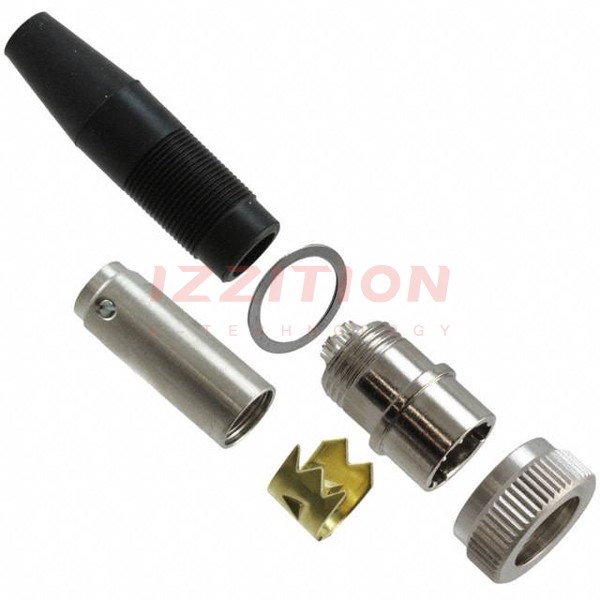

| Part Number | SR30-10PF-7P(71) | SR30-10PF-6P(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 7 | 6 |
| Shell Size - Insert | 10 | 10 |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver |
| Color | Black, Silver | Black, Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded | Unshielded |
| Current Rating (Amps) | 1A | 1A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
