SDBG-25S(55)
  • Share:

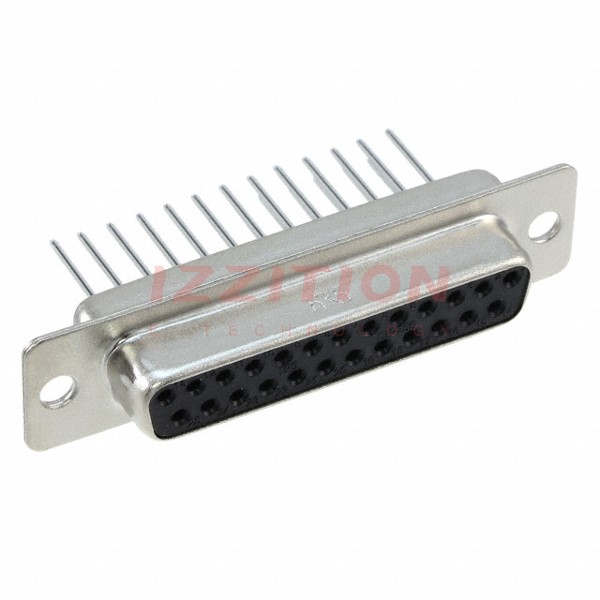

Hirose Electric Co Ltd SDBG-25S(55)

Manufacturer No:
SDBG-25S(55)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
SDBG-25S(55) Datasheet
ECAD Model:
-
Description:
CONN D-SUB RCPT 25P PNL MNT SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:25
Number of Rows:2
Mounting Type:Panel Mount, Through Hole
Shell Size, Connector Layout:3 (DB, B)
Contact Type:Signal
Flange Feature:Housing/Shell (Unthreaded)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:8.00µin (0.203µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):3A
Backset Spacing:-
Features:-
0 Remaining View Similar

In Stock

$10.98
28

Please send RFQ , we will respond immediately.
