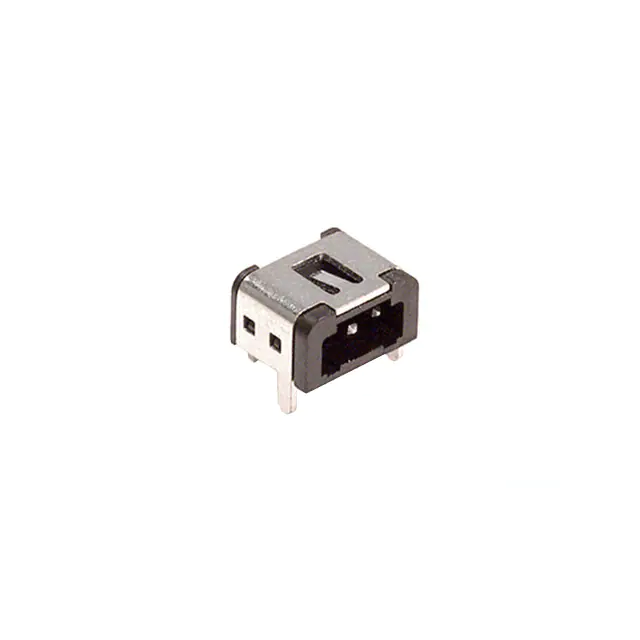

| Part Number | RP34L-5R-3PD | RP34L-5R-2PD |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.093" (2.35mm) | 0.106" (2.70mm) |
| Number of Positions | 3 | 2 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Palladium | Palladium |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | 39.4µin (1.00µm) |
| Contact Finish - Post | - | - |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Guide, Shielded | Board Guide, Shielded |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 5A | 5A |
| Voltage Rating | - | - |
