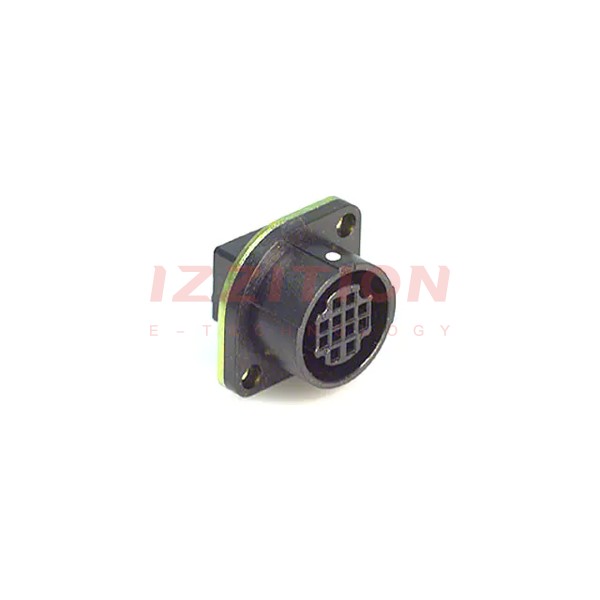

| Part Number | RP17-13R-12SC | RP17-13J-12SC |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Receptacle Housing | Jack Housing |
| Type | For Female Sockets | For Female Sockets |
| Number of Positions | 12 | 12 |
| Shell Size - Insert | 13 | 13 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | 1.2mm (9), 1.6mm (3) | 1.2mm (9), 1.6mm (3) |
| Mounting Type | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | - |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | - | - |
| Shell Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Shell Finish | - | - |
| Housing Color | Black | Black |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | - | Backshell, Cable Clamp, Strain Relief |
| Shielding | Unshielded | Unshielded |
