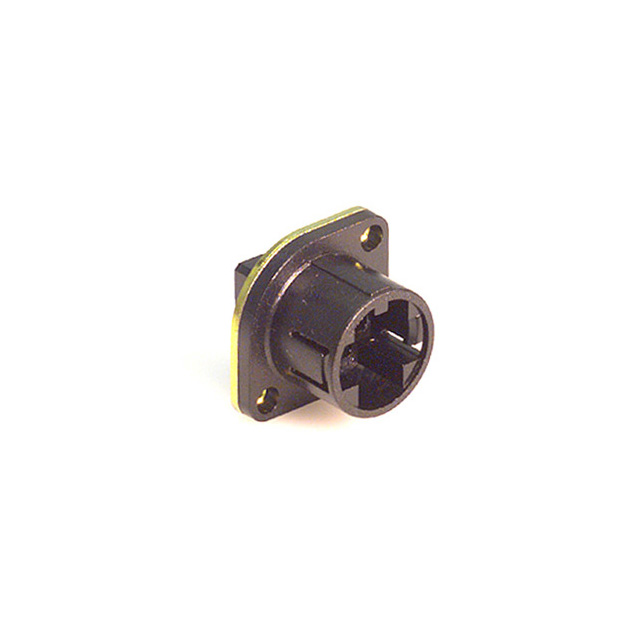

| Part Number | RP13A-12RA-13PC(71) | RP13A-12RA-15PC(71) | RP13A-12RB-13PC(71) | RP13A-12PA-13PC(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Last Time Buy | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing |
| Type | For Male Pins | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 13 | 15 | 13 | 13 |
| Shell Size - Insert | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 1.2mm (11), 1.6mm (2) | 1.2mm | 1.2mm (11), 1.6mm (2) | 1.2mm (11), 1.6mm (2) |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | Bulkhead - Rear Side Nut | - |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - |
| Shell Material | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) |
| Shell Finish | - | - | - | - |
| Housing Color | Black | Black | Black | Black |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | Backshell, Cable Clamp, Electrostatic Shield, Strain Relief |
| Shielding | Unshielded | Unshielded | Unshielded | Shielded |
