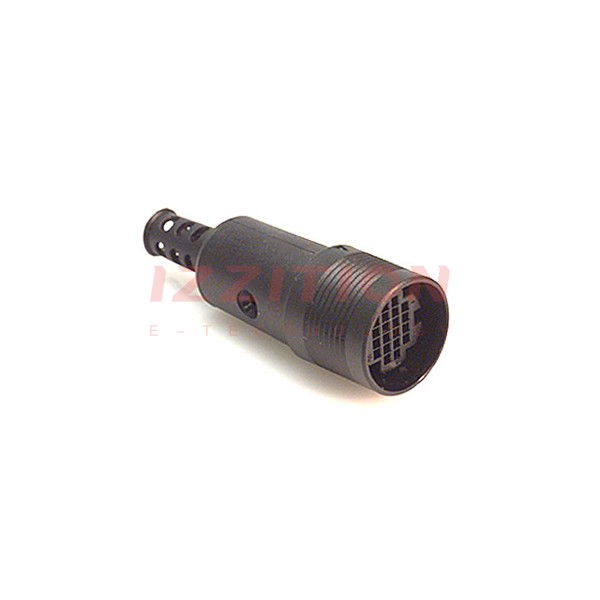

| Part Number | RP13A-12PO-20SC(71) | RP13A-12PS-20SC(71) | RP13A-12PD-20SC(71) | RP13A-12PG-20SC(71) | RP13A-12PH-20SC(71) | RP13A-12PK-20SC(71) |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Active | Active | Active | Active |
| Connector Type | Plug Housing | Plug Housing | Plug Housing | Plug Housing | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 20 | 20 | 20 | 20 | 20 | 20 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 1.2mm | 1.2mm | 1.2mm | 1.2mm | 1.2mm | 1.2mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - |
| Shell Material | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) |
| Shell Finish | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Strain Relief |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
