RP13A-12PA-13SC
  • Share:

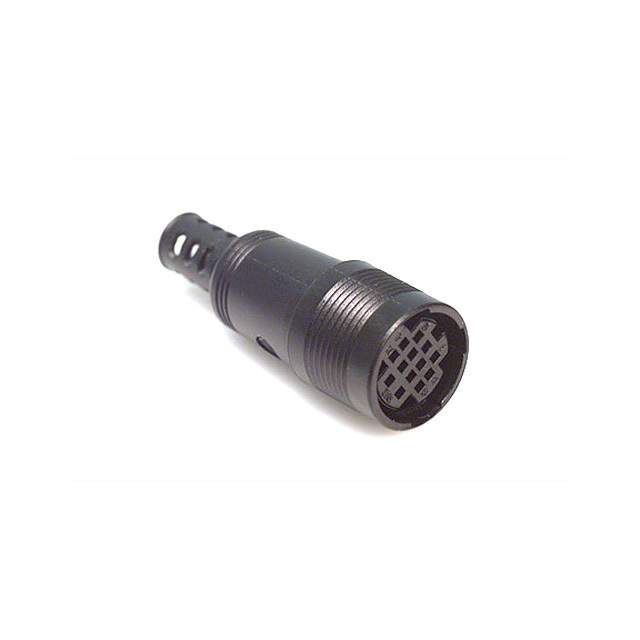

Hirose Electric Co Ltd RP13A-12PA-13SC

Manufacturer No:
RP13A-12PA-13SC
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
RP13A-12PA-13SC Datasheet
ECAD Model:
-
Description:
CONN PLG HSG FMALE 13POS INLINE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug Housing
Type:For Female Sockets
Number of Positions:13
Shell Size - Insert:12
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:1.2mm (11), 1.6mm (2)
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:-
Shell Material:Polycarbonate (PC)
Shell Finish:-
Housing Color:Black
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Cable Clamp, Strain Relief
Shielding:Unshielded
0 Remaining View Similar

In Stock

-
311

Please send RFQ , we will respond immediately.

Similar Products

Part Number RP13A-12PA-13SC RP13A-12PB-13SC   RP13A-12PD-13SC   RP13A-12PE-13SC   RP13A-12PK-13SC   RP13A-12PS-13SC
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Plug Housing Plug Housing Plug Housing Plug Housing Plug Housing Plug Housing
Type For Female Sockets For Female Sockets For Female Sockets For Female Sockets For Female Sockets For Female Sockets
Number of Positions 13 13 13 13 13 13
Shell Size - Insert 12 12 12 12 12 12
Shell Size, MIL - - - - - -
Contact Type Crimp Crimp Crimp Crimp Crimp Crimp
Contact Size 1.2mm (11), 1.6mm (2) 1.2mm (11), 1.6mm (2) 1.2mm (11), 1.6mm (2) 1.2mm (11), 1.6mm (2) 1.2mm (11), 1.6mm (2) 1.2mm (11), 1.6mm (2)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - - - -
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed Keyed Keyed
Primary Material - - - - - -
Shell Material Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC)
Shell Finish - - - - - -
Housing Color Black Black Black Black Black Black
Ingress Protection - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded
