Please send RFQ , we will respond immediately.

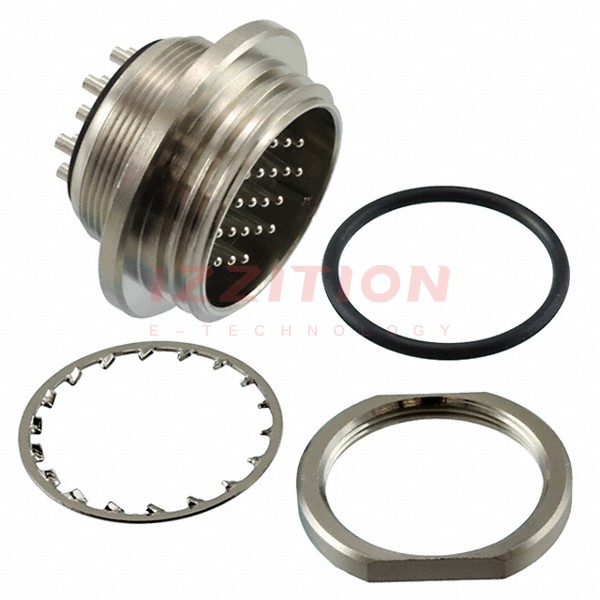

| Part Number | RM21WTR-20P(71) | RM21WTR-20S(71) | RM21TR-20P(71) | RM21WTP-20P(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets | Receptacle, Male Pins | Plug, Male Pins |
| Number of Positions | 20 | 20 | 20 | 20 |
| Shell Size - Insert | 21 | 21 | 21 | 21 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - |
| Termination | Solder Cup | - | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | - | Metal | Metal |
| Shell Material | Brass | - | Brass | Brass |
| Shell Finish | Nickel | - | Nickel | Nickel |
| Contact Finish - Mating | Silver | - | Silver | Silver |
| Color | Silver | - | Silver | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | - | - | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | Backshell, Coupling Nut |
| Shielding | - | - | - | - |
| Current Rating (Amps) | 5A | - | 5A | 5A |
| Voltage Rating | 350VAC, 490VDC | - | 350VAC, 490VDC | 350VAC, 490VDC |
| Cable Opening | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
