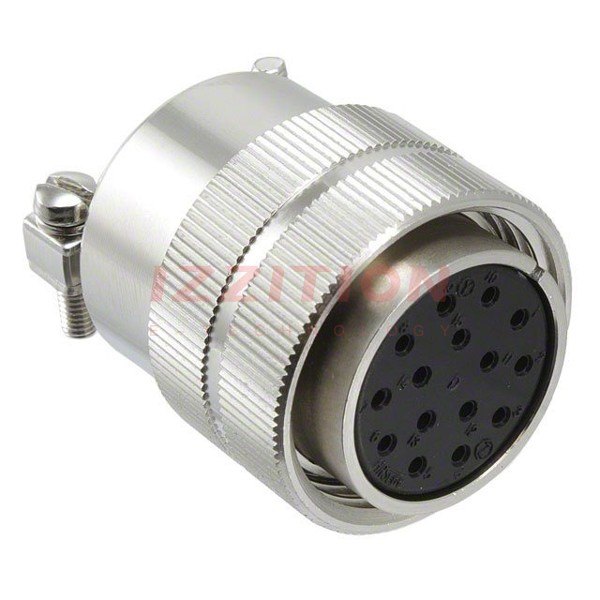

| Part Number | RM21TP-15S(71) | RM21TR-15S(71) | RM21WTP-15S(71) | RM21TP-15P(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug, Female Sockets | Receptacle, Female Sockets | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 15 | 15 | 15 | 15 |
| Shell Size - Insert | 21 | 21 | 21 | 21 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - |
| Termination | - | - | - | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | Metal |
| Shell Material | - | - | - | Brass |
| Shell Finish | - | - | - | Nickel |
| Contact Finish - Mating | - | - | - | Silver |
| Color | - | - | - | Silver |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | - | - | - | UL94 V-0 |
| Features | - | - | - | Backshell, Cable Clamp, Coupling Nut |
| Shielding | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | - | 5A |
| Voltage Rating | 500VAC, 700VDC | 500VAC, 700VDC | - | 500VAC, 700VDC |
| Cable Opening | - | - | - | 0.591" (15.00mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | - | -25°C ~ 85°C |
