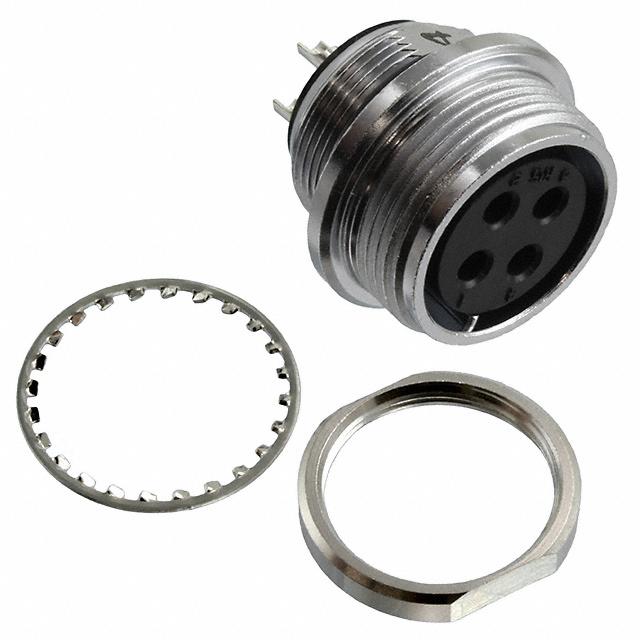

| Part Number | RM15WTRZ-4S(71) | RM15WTRZ-8S(71) | RM15WTJZ-4S(71) | RM15WTPZ-4S(71) | RM15WTRZ-2S(71) | RM15WTRZ-4P(71) |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets | Plug, Female Sockets | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 4 | 8 | 4 | 4 | 2 | 4 |
| Shell Size - Insert | 15 | 15 | 15 | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - | - | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | - | Solder Cup | - | - | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | Metal | - | - | Metal | Metal |
| Shell Material | - | Zinc Alloy | - | - | Zinc Alloy | Zinc Alloy |
| Shell Finish | - | Chrome | - | - | Chrome | Chrome |
| Contact Finish - Mating | - | Silver | - | - | Silver | Silver |
| Color | - | Silver | - | - | Silver | Silver |
| Ingress Protection | - | IP67/IP68 - Dust Tight, Waterproof | - | - | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - | UL94 V-0 | - | - | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - |
| Current Rating (Amps) | - | 5A | - | - | 10A | 10A |
| Voltage Rating | - | 500VAC, 700VDC | - | - | 600VAC, 840VDC | 500VAC, 700VDC |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | - | -25°C ~ 85°C | - | - | -25°C ~ 85°C | -25°C ~ 85°C |
