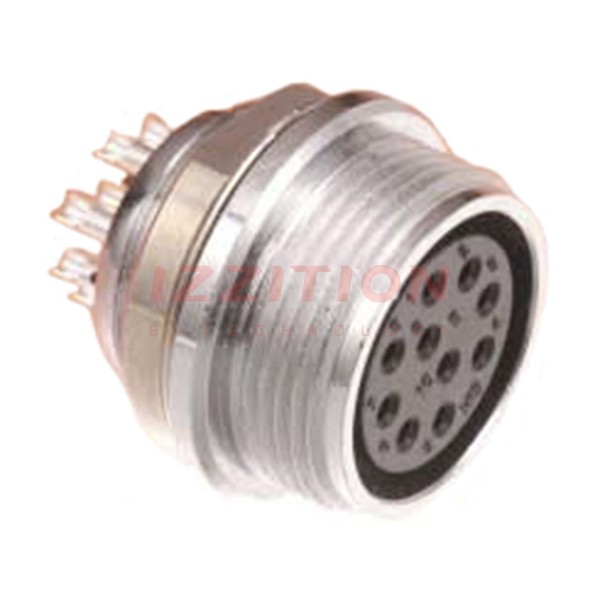

| Part Number | RM15WTRZ-10S(71) | RM15WTRZ-12S(71) | RM15WTRZA-10S(71) | RM15WTRZB-10S(71) | RM15WTJZ-10S(71) | RM15WTPZ-10S(71) | RM15WTRZ-10P(71) |
|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets | Plug, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 10 | 12 | 10 | 10 | 10 | 10 | 10 |
| Shell Size - Insert | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Front Side Nut | Flange | - | - | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Brass | Zinc Alloy | Zinc Alloy |
| Shell Finish | Chrome | Chrome | Chrome | Chrome | Chromium | Chromate | Chrome |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | Backshell | Backshell, Coupling Nut | - |
| Shielding | - | - | - | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | 5A | 5A | 5A | 5A | 5A |
| Voltage Rating | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC |
| Cable Opening | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
