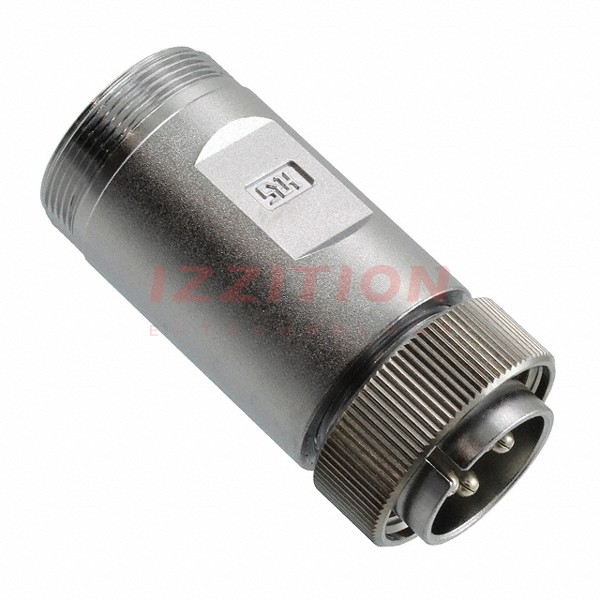

| Part Number | RM15WTPZA-4P(71) | RM15WTPZ-4P(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 4 | 4 |
| Shell Size - Insert | 15 | 15 |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Chrome | Chromate |
| Contact Finish - Mating | Silver | Silver |
| Color | Silver | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Coupling Nut | Backshell, Coupling Nut |
| Shielding | - | - |
| Current Rating (Amps) | 10A | 10A |
| Voltage Rating | 500VAC, 700VDC | 500VAC, 700VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
