RM15WTPZA-12P(72)
  • Share:

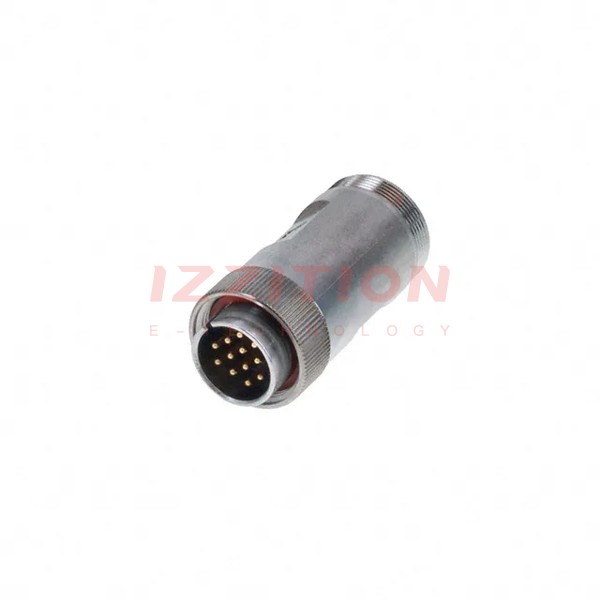

Hirose Electric Co Ltd RM15WTPZA-12P(72)

Manufacturer No:
RM15WTPZA-12P(72)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
RM15WTPZA-12P(72) Datasheet
ECAD Model:
-
Description:
CONN PLUG MALE 12P GOLD SLDR CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Male Pins
Number of Positions:12
Shell Size - Insert:15
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Copper Alloy
Shell Finish:Chrome
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Coupling Nut
Shielding:-
Current Rating (Amps):5A
Voltage Rating:350VAC, 490VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
364

Please send RFQ , we will respond immediately.

Similar Products

Part Number RM15WTPZA-12P(72) RM15WTPZA-12S(72)   RM15WTRZA-12P(72)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete
Connector Type Plug, Male Pins Plug, Female Sockets Receptacle, Male Pins
Number of Positions 12 12 12
Shell Size - Insert 15 15 15
Shell Size, MIL - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount
Mounting Feature - - Bulkhead - Front Side Nut
Termination Solder Cup Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded
Orientation Keyed Keyed Keyed
Primary Material Metal Metal Metal
Shell Material Copper Alloy Copper Alloy Zinc Alloy
Shell Finish Chrome Chrome Chrome
Contact Finish - Mating Gold Gold Gold
Color Silver Silver Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Coupling Nut Backshell, Coupling Nut -
Shielding - - -
Current Rating (Amps) 5A 5A 5A
Voltage Rating 350VAC, 490VDC 350VAC, 490VDC 350VAC, 490VDC
Cable Opening - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
