Please send RFQ , we will respond immediately.

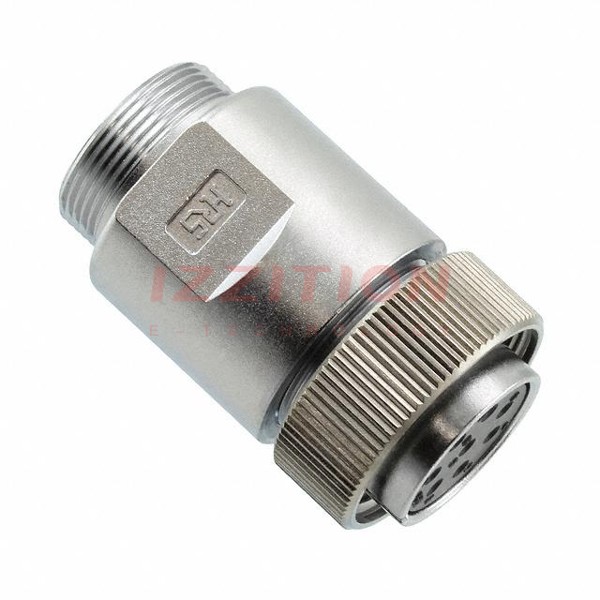

| Part Number | RM15WTPZ-8S(71) | RM15WTRZ-8S(71) | RM15WTJZ-8S(71) | RM15WTPZ-2S(71) | RM15WTPZ-3S(71) | RM15WTPZ-4S(71) | RM15WTPZ-8P(71) |
|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Connector Type | Plug, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 8 | 8 | 8 | 2 | 3 | 4 | 8 |
| Shell Size - Insert | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | - | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal | - | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Brass | Zinc Alloy | Zinc Alloy | - | Zinc Alloy |
| Shell Finish | Chrome | Chrome | Chromium | Chrome | Chromate | - | Chrome |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | Silver | - | Silver |
| Color | Silver | Silver | Silver | Silver | Silver | - | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | - | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | - | UL94 V-0 |
| Features | Backshell, Coupling Nut | - | Backshell | Backshell, Coupling Nut | Backshell, Coupling Nut | - | Backshell, Coupling Nut |
| Shielding | - | - | - | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | 5A | 10A | 10A | - | 5A |
| Voltage Rating | 500VAC, 700VDC | 500VAC, 700VDC | 500VAC, 700VDC | 600VAC, 840VDC | 500VAC, 700VDC | - | 500VAC, 700VDC |
| Cable Opening | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - | -25°C ~ 85°C |
