RM15WTPZ-3S(71)
  • Share:

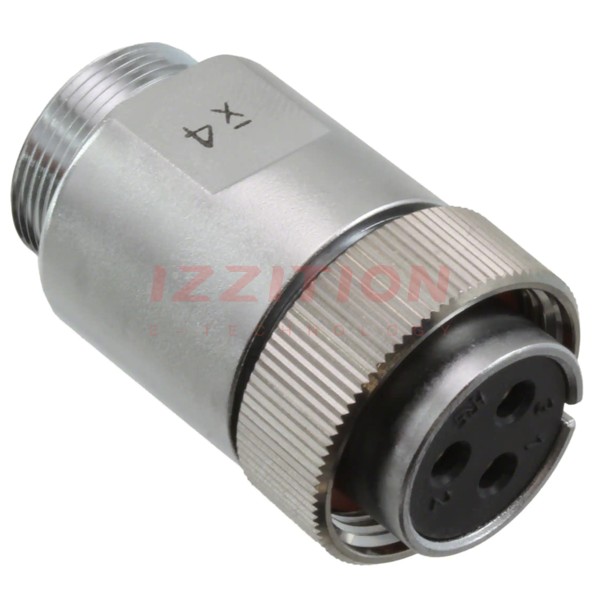

Hirose Electric Co Ltd RM15WTPZ-3S(71)

Manufacturer No:
RM15WTPZ-3S(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
RM15WTPZ-3S(71) Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 3P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:3
Shell Size - Insert:15
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Chromate
Contact Finish - Mating:Silver
Color:Silver
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Coupling Nut
Shielding:-
Current Rating (Amps):10A
Voltage Rating:500VAC, 700VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$26.08
7

Please send RFQ , we will respond immediately.

Similar Products

Part Number RM15WTPZ-3S(71) RM15WTPZ-3S(72)   RM15WTPZ-4S(71)   RM15WTPZ-8S(71)   RM15WTPZ-2S(71)   RM15WTPZ-3P(71)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Obsolete Obsolete Obsolete Active
Connector Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Male Pins
Number of Positions 3 3 4 8 2 3
Shell Size - Insert 15 15 15 15 15 15
Shell Size, MIL - - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - - - -
Termination Solder Cup Solder Cup - Solder Cup Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed Keyed Keyed
Primary Material Metal Metal - Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy - Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Chromate Chromate - Chrome Chrome Chrome
Contact Finish - Mating Silver Gold - Silver Silver Silver
Color Silver Silver - Silver Silver Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof - IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 - UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Coupling Nut Backshell, Coupling Nut - Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut
Shielding - - - - - -
Current Rating (Amps) 10A 10A - 5A 10A 10A
Voltage Rating 500VAC, 700VDC 500VAC, 700VDC - 500VAC, 700VDC 600VAC, 840VDC 500VAC, 700VDC
Cable Opening - - - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C - -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
