Please send RFQ , we will respond immediately.

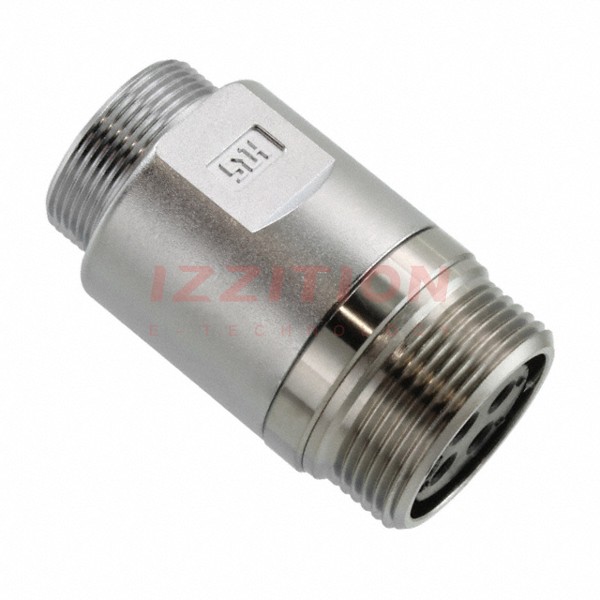

| Part Number | RM15WTJZ-4S(71) | RM15WTPZ-4S(71) | RM15WTRZ-4S(71) | RM15WTJZ-8S(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Jack, Female Sockets | Plug, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets |
| Number of Positions | 4 | 4 | 4 | 8 |
| Shell Size - Insert | 15 | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut | - |
| Termination | - | - | - | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | Metal |
| Shell Material | - | - | - | Brass |
| Shell Finish | - | - | - | Chromium |
| Contact Finish - Mating | - | - | - | Silver |
| Color | - | - | - | Silver |
| Ingress Protection | - | - | - | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | UL94 V-0 |
| Features | - | - | - | Backshell |
| Shielding | - | - | - | - |
| Current Rating (Amps) | - | - | - | 5A |
| Voltage Rating | - | - | - | 500VAC, 700VDC |
| Cable Opening | - | - | - | - |
| Operating Temperature | - | - | - | -25°C ~ 85°C |
