Please send RFQ , we will respond immediately.

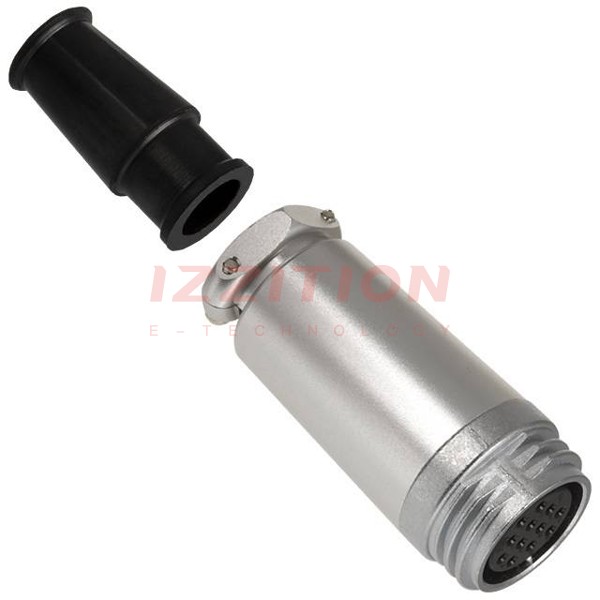

| Part Number | RM15TJD-12S(71) | RM15TPD-12S(71) | RM15TRD-12S(71) | RM15TJD-10S(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Jack, Female Sockets | Plug, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets |
| Number of Positions | 12 | 12 | 12 | 10 |
| Shell Size - Insert | 15 | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Chrome | Chrome | Chrome | Chrome |
| Contact Finish - Mating | Silver | Silver | Silver | Silver |
| Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Coupling Nut, Strain Relief | - | Backshell, Cable Clamp, Strain Relief |
| Shielding | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | 5A | 5A |
| Voltage Rating | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC |
| Cable Opening | 0.386" (9.80mm) | 0.386" (9.80mm) | - | 0.386" (9.80mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
