Please send RFQ , we will respond immediately.

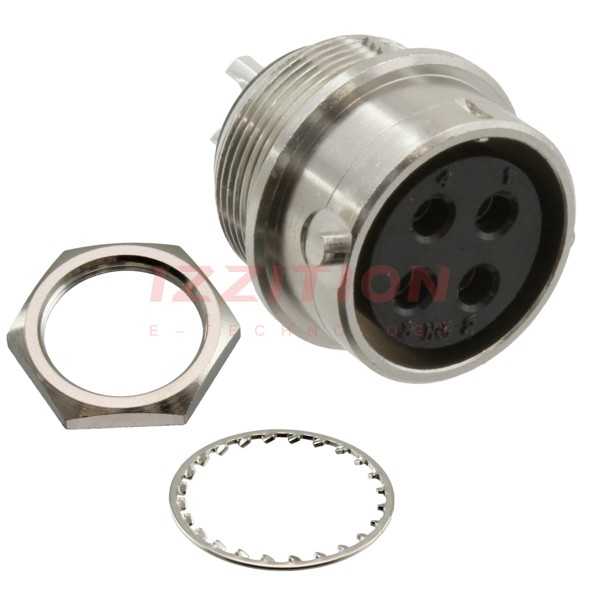

| Part Number | RM15QRD-4SA(71) | RM15QRD-2SA(71) | RM15QRD-4PA(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 4 | 2 | 4 |
| Shell Size - Insert | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | - | Solder Cup | Solder Cup |
| Fastening Type | Push-Twist | Push-Twist | Push-Twist |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | Metal | Metal |
| Shell Material | - | Brass | Brass |
| Shell Finish | - | Nickel | Nickel |
| Contact Finish - Mating | - | Silver | Silver |
| Color | - | Silver | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | - | - | - |
| Current Rating (Amps) | 10A | 10A | 10A |
| Voltage Rating | 500VAC, 700VDC | 600VAC, 840VDC | 500VAC, 700VDC |
| Cable Opening | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
