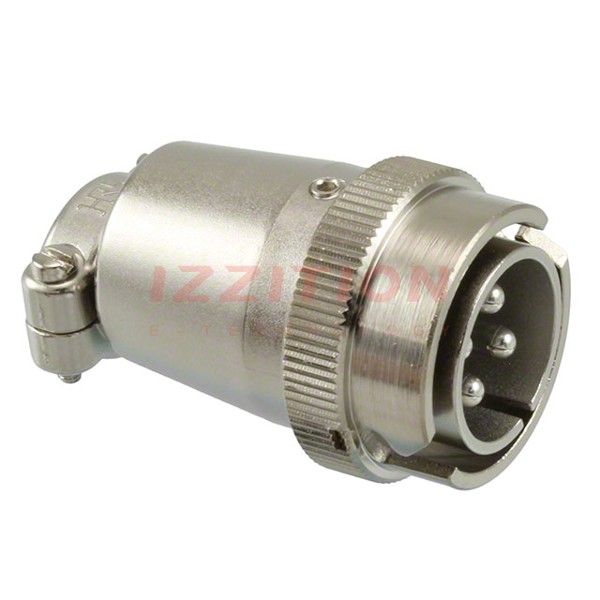

| Part Number | RM15QPS-4PA(71) | RM15QPS-4SA(71) | RM15QPS-2PA(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 4 | 4 | 2 |
| Shell Size - Insert | 15 | 15 | 15 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Solder Cup | - | Solder Cup |
| Fastening Type | Push-Twist | Push-Twist | Push-Twist |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | - | Metal |
| Shell Material | Zinc Alloy | - | Zinc Alloy |
| Shell Finish | Nickel | - | Nickel |
| Contact Finish - Mating | Silver | - | Silver |
| Color | Silver | - | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut | - | Backshell, Cable Clamp, Coupling Nut |
| Shielding | - | - | - |
| Current Rating (Amps) | 10A | 10A | 10A |
| Voltage Rating | 500VAC, 700VDC | 500VAC, 700VDC | 600VAC, 840VDC |
| Cable Opening | 0.445" (11.30mm) | - | 0.445" (11.30mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
